Location:Ultra slim indoor Spotlight < PRODUCT < HOME

PRODUCT

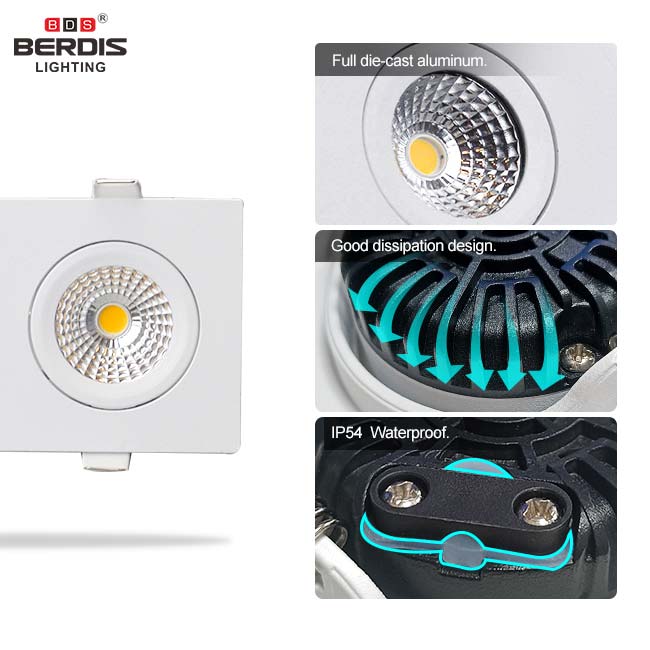

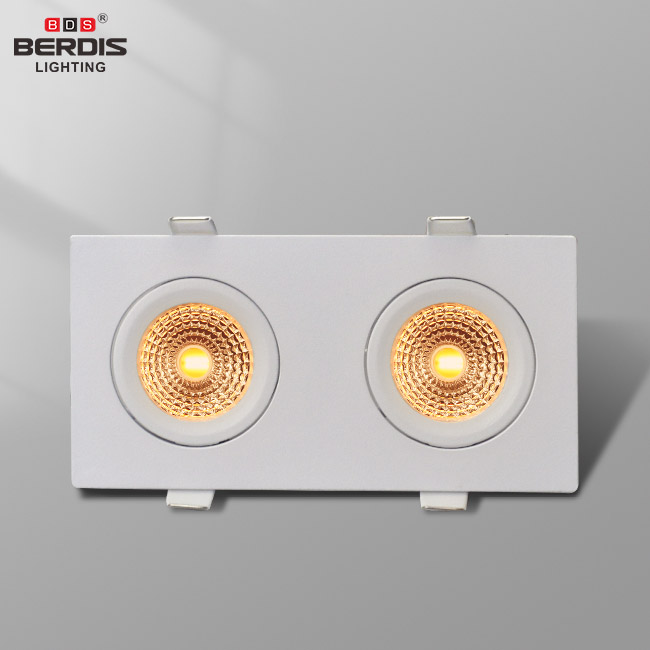

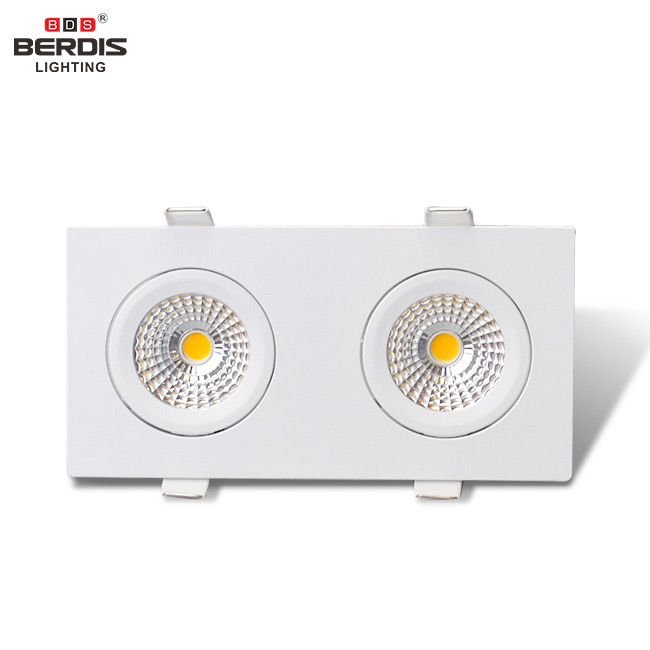

5~7*2W IP67 Ultra slim Flat adjustable

    Item NO.:B0101-03/A2

●   Power:5W/7W *2

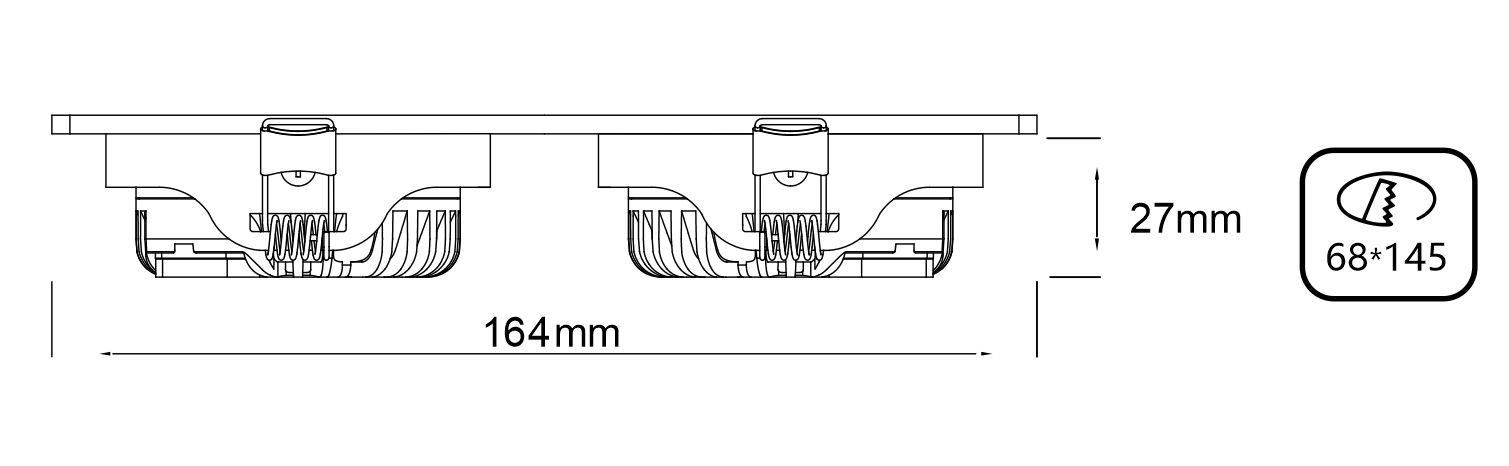

●   Cut-out:Ø68~75*135mm

●   24°、38°、60°  beam angle

●   Ultra thin ,only 23MM height

●   5 years/10 years warranty

●   IP Rating: 21/54/65/67

●   Optics:Diffuser, Lens, Reflector

●   Free from harmful chemicals and substances (RoHS Complaint)





DETAILS

●  Private mould,patented product

●  Driverless Trailing edge Dimmable solution

●  Internal DC12V/24V single voltage solution

●  Internal DC10-30V voltage solution

●  One-To-One  External constent current Trailing edge Dimmable driver

●  One-To-Six  External constent current Trailing edge Dimmable driver

●  Certification:CE/EMC/ROHS/SAA/FCC/ETL

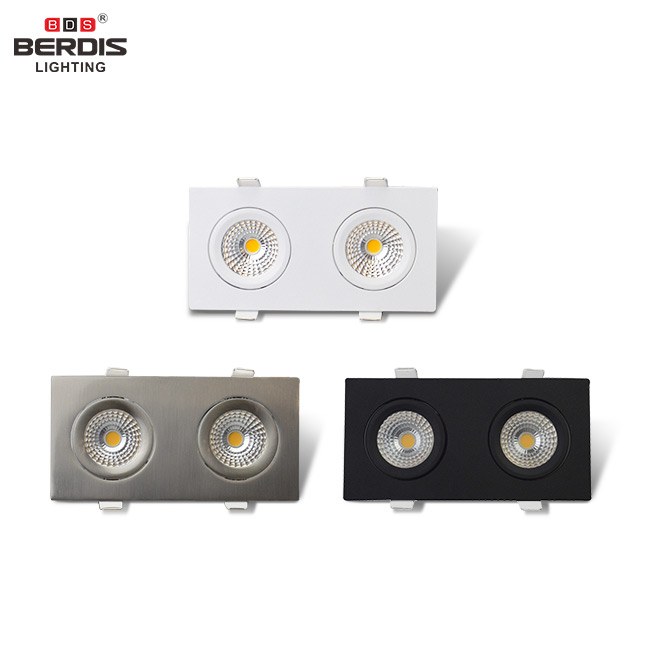

●  Available:Silver,White, gray, black, nickel-brushed, chrome



Item NO.
Power
CRI
CCTLED
Beam angle
Dimension
Cut-out
Dimmable
B0101-03/A22*3W
90/95

2700/3000/4000/

6000K/Dim to warm

COB
60°/38°/24°

82*155*26mm



68*135mm
YES&NO
B0101-03/A22*5W
90/95

2700/3000/4000/

6000K/Dim to warm

COB60°/38°/24°

82*155*26mm



68*135mmYES&NO
B0101-03/A22*7W
90/95

2700/3000/4000/

6000K/Dim to warm

COB60°/38°/24°

82*155*26mm



68*135mmYES&NO
